Detailed Description

Intro

The BotSense bsProxy IP Proxy Server provides the server-side services for BotSense clients. The bsProxy is an IP base proxy server for proxied (pseudo) devices on the target system, such as a robot's sensors and effectors. By providing an IP interface, the proxied hardware and software resources can be read and controlled remotely, anywhere.

The bsProxy can support multiple simultaneous clients, with each client having access to multiple proxied devices. Different clients can have access to the same proxied device. The bsProxy provides mutual exclusion mechanisms to ensure device and message correctness.

A proxied device is a target system resource, typcially a device driver controlling a specific hardware device. For example, a target system's I²C Bus and an RS-232 serial port are proxied devices.

A proxied device may be a pseudo device in that it may proxy a software resource rather than a specific piece of hardware. Shared memory is an example of a proxied pseudo device.

Paired with each proxied device is a bsProxy associated Dynamic Link Library plug-in interface module. The interface module provides the device-specific request-response protocol termination for client requests.

When a client opens a virtual connection to a proxied device, the client specifies the proxied device's (partial) URI and the protocol to apply to that device. The protocol is instantiated by specifying the interface module's (partial) URI. For example, a valid device/module URI pair could be:

/dev/ttyUSB0 , robot/libbsserver_brain

The opened proxied device connection is referred to as a virtual connection since it is a logical connection multiplexed over the actual client/server IP connection. Each virtual connection is identified by a server-wide unique handle.

Flow Control Charts

BotSense bsProxy Client Connect Flow Control

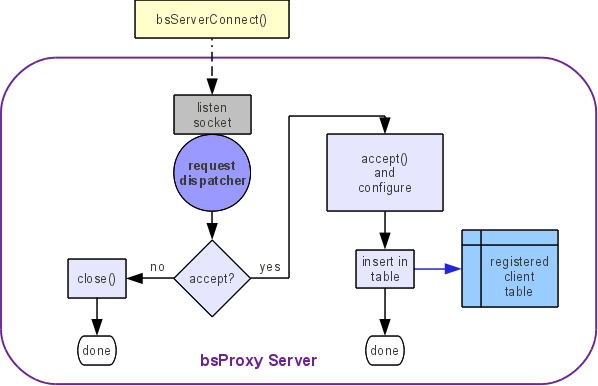

Figure 3: bsProxy Connection Flow Chart

The flow control chart in Figure 3 provides a high-level view of the control and data flow within the BotSense bsProxy server when a new client attempts to connect to the server.

When a new client connects to the bsProxy server (connect(2)), the server checks if the new client will be within the server's configurable limits and restrictions. If the new client is accepted, the server calls accept(2) to create a new, client-specific socket, configures the socket, as inserts the client data into the server's table of registered clients.

On the client side, the BotSense library libbotsense will automatically keep track of the client's connection.

If bsProxy denies the client connection, it closes the connection. The BotSense library libbotsense will dectect the failure and return the appropiate error code back to the client.

BotSense bsProxy Client Open Device Request Flow Control

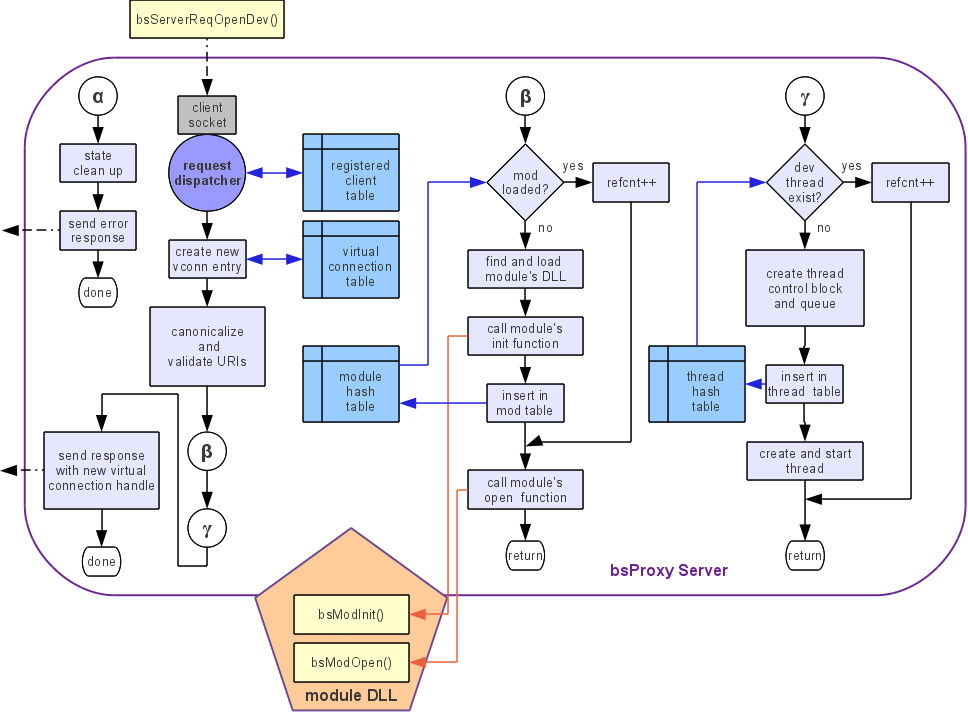

Figure 4: bsProxy Open Device Flow Chart

The flow control chart in Figure 4 provides a high-level view of the control and data flow executed by bsProxy to open a proxied device.

When a client requests a proxied device to be opened, and a virtual connection to be established, the bsProxy server receives the request over the client's IP connection. The dispatcher queues the request in the server-termainated request thread (not shown).

In the server request thread context, a virtual connection entry is first created in the internal virtual connection table and a virtual connection handle assigned. Both the proxied device and interface modules Uniform Resource Identifiers (file path names) are canonicalized and validated. If a URI is invalid or violates security settings (future), the request is rejected.

The interface module and proxied device resources are attached to the virtual connection data.

When the virtual connection has been successfully set up, the server sends a response message back to the client containing the parameter of the newly assigned virtual connection handle. The BotSense library libbotsense processes the response message and returns the handle back to the client's calling context.

α All client requests require a response from the server. At any time when an error occurs and the bsProxy server cannot service the request successfully, the flow logic delineated by the α connector is executed and the request is terminated. The BotSense library libbotsense processes the error response message and returns the appropriate error code back to the client's calling context. The error branches are not shown for clarity.

β The module processing sub-flow control logic is executed starting at the β connector. If the interace module uniquely identified by its URI has already been dynamically loaded into bsProxy's application execution space then its reference count is incremented. Otherwise the module is dynamically loaded. The command-line library search paths are first searched, followed by any BotSense configuration file paths, and finally the default paths are searched. Once the file has been loaded and dynamically linked, the required module initialization function is called. The module data are inserted into the internal module hash table. Finally, regardless of the conditional logic above, the required module open function is called with specific parameters provided by the client's request message.

γ The thread processing sub-flow control logic is executed starting at the γ connector. One device thread is created per each unique proxied device URI. Again, if the device thread already exists the the tis reference count is increemented. Otherwise a thread control block along with its input queue are created and inserted into the internal device thread hash table. The thread is then created and started in its own execution context.
