State2_3Turing Class Reference

The (2,3) Turing state base class. More...

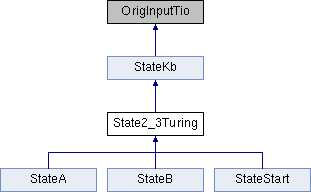

Inheritance diagram for State2_3Turing:

Public Member Functions
	State2_3Turing (int nStateId, const std::string &strStateName="", const std::string &strRefTag="")
	Initializatoin constuctor. More...
virtual	~State2_3Turing ()
	Destructor.
int	readSymbol ()
void	writeSymbol (int sym)
void	moveHeadLeft ()
	Move head left one position on the tape.
void	moveHeadRight ()
	Move head right one position on the tape.
void	showTape ()
	Show colorized tape to stdout.

Static Public Attributes
static vector< int >	Tape
	the tape of symbols More...
static int	Head
	the tape read/write head

Detailed Description

The (2,3) Turing state base class.

Definition at line 239 of file ut-sm.cxx.

Constructor & Destructor Documentation

State2_3Turing::State2_3Turing ( int  nStateId, const std::string &  strStateName = "", const std::string &  strRefTag = ""  )

inline

Initializatoin constuctor.

Parameters

nStateId	State id. Must be state machine unique.
strStateName	State name.
strRefTag	State reference id.

Definition at line 252 of file ut-sm.cxx.

                                                :
    StateKb(nStateId, strStateName, strRefTag)
  {
  }

---

The documentation for this class was generated from the following file:

• sw/librnr_appkit/ut/ut-sm.cxx
